Setting Trip Plan Analyzer Properties

Configure user-defined properties to make some Trip Plan Analyzer features available in the Trapeze4 Workstation.

Before you begin

Before installing or upgrading this product, contact your Trapeze representative for assistance.

Additional security settings are required for this feature to function correctly.

About this task

User-defined properties must be set for each system user.

These properties must both be set to Yes if the Max OBT (maximum on-board time) should be set for the booking based on the fixed route travel time.

Procedure

  1. In the Trapeze4 Workstation, click Task > Trip Booking.
  2. Click File > Properties.
  3. On the Booking Screen tab, click Auto Search FX Itineraries.

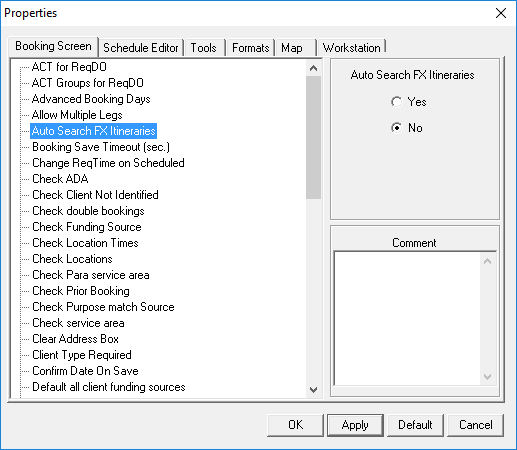

    The Properties dialog box for user-defined properties open to the Booking Screen tab with the Auto Search FX Itineraries property highlighted.
  4. Select Yes.
    Yes forces a fixed route itinerary search to run automatically when a trip booking is saved. An automatic search facilitates a comparison of fixed route service data with trip booking requests.
  5. Click Apply.
  6. On the same tab, click Trip Plan Analyzer.
  7. Select Yes.
    Yes allows trip bookings to load in the Trip Plan Analyzer Wizard.
  8. Click Apply.
  9. Click OK.
