Viewing Itinerary Details on the Batch Tab

In the Trip Plan Analyzer Wizard, solutions can be viewed in greater detail on the Batch tab.

Before you begin

Open the Trip Plan Analyzer Wizard.

About this task

Using the Batch tab provides the convenience of seeing itinerary solution details on the screen where the trip analysis is run. Using the Clipboard tab allows you to view the itinerary solution details without the distraction of additional information.

Procedure

  1. On the Batch tab, select the appropriate row.
  2. Click the Show Batch Details button:
    Sunglasses in front of a piece of paper.
    Two additional grids appear.
  3. Select a solution in the middle grid and view its details in the bottom grid.

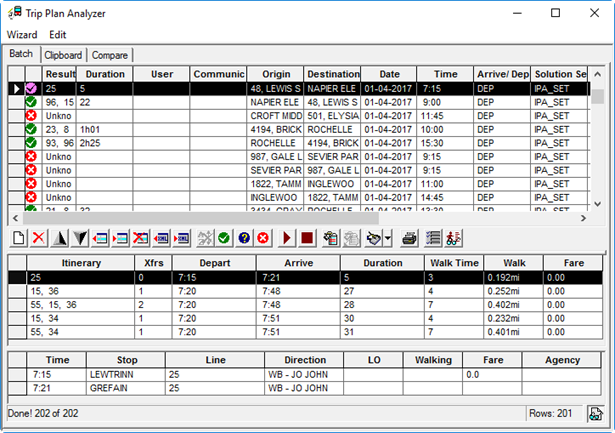

    Trip Plan Analyzer Wizard shown with a number of trips analyzed, with one trip selected, one solution selected, and the detailed itinerary displayed.

    LO stands for layover. This is the amount of time the passenger will have to wait for the second bus.

    A result line with an asterisk after it indicates that it is the first of two lines involving an in-seat transfer. The bottom grid shows the stop where the in-seat line transfer occurs and identifies the two lines.
