Block Paddle
The Block Paddle provides a list of all the trips for each vehicle block for specified lines and services including the comments associated with them.

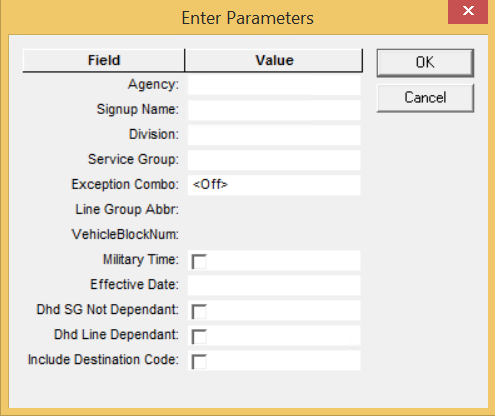

The following graphic shows the Block Paddle Report parameters:
| Parameter | Description |
|---|---|
| Agency | Agency Code |
| Signup Name | Name of Sign-up Period |
| Division | Division Code |
| Service Group | Service Group Abbreviation |
| Exception Combo |
Selected exception combination. Set to <Off>by default. |
| Line Group Abbr. | Abbreviation of line group name |
| VehicleBlockNum | Number of Vehicle Block |
| Military Time |
If check box is selected, the 24-hour clock (midnight to midnight) time format is used, for example, 13:00:00 is 1:00 PM. in the 12-hour clock format. |
| Effective Date | Information related to the period when the report is in effect. This is a text field. You can enter any piece of data you want to include in the report, for example, date or name of user. |
| Dhd SG Not Dependant | *If selected, deadheads are included without service groups. |
| Dhd Line Dependant | *If selected, deadheads are included using lines. |
| Include Destination Code | If check box is selected, the pattern destination code is added in the report. The code is defined on the Edit tab in the Patterns Edit dialog box. |
* If applied, the setting for this parameter should be the same for all your reports.

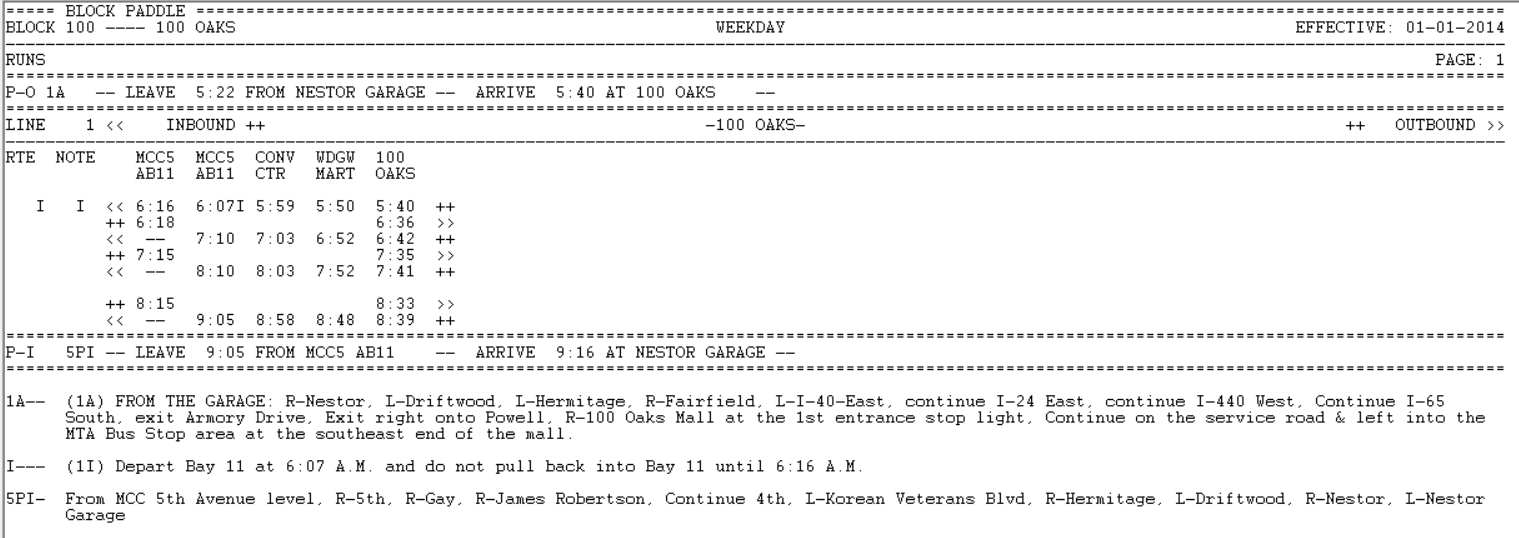

Sample Block Paddle
