Building a Map File

When building a map file, make sure that you select the appropriate options in the Map Builder dialog box.

Make sure that you have write access to the map data.
  1. Click Tools > Maintenance > Rebuild Map.

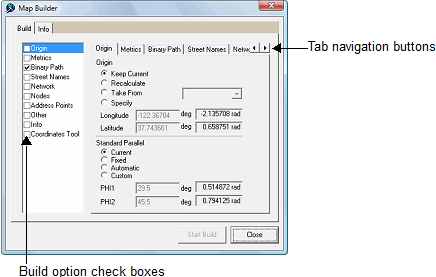

    The Map Builder dialog box appears.
    Map Builder dialog box
  2. Select the following check boxes on the left pane:
    • Metrics
    • Binary Path
    • Street Names
    • Network
    • Nodes
    • Other

    If a tab does not appear in the dialog box, click the navigation buttons to browse through the tabs: Navigation button

  3. After setting the options, click Start Build.

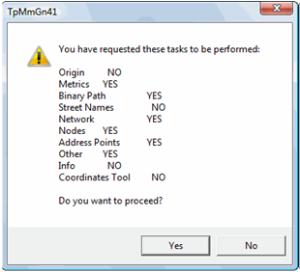

  4. When prompted to confirm the selected tasks to be performed, click Yes.
    Confirmation message
    The Map Builder dialog box shows the build progress.
    Map Builder

    When the build finishes, a confirmation message appears.

  5. Click OK.
  6. In the Map Builder dialog box, click Close.
You can choose to close and restart MapEdit after this procedure.
