TransitMaster RNC Computer Specifications
The following requirements are needed for the TransitMaster RNC Computer used in TDMA fixed site data interface applications.
Note: Works in conjunction with Trapeze RNC Modem Assembly and client specified base data
over the air radio station. The Trapeze RNC Computer is designed specifically for
TransitMaster TDMA applications and cannot be substituted with other computers with
similar specifications. The RNC must be purchased directly from Trapeze with custom
software preloaded client application software.

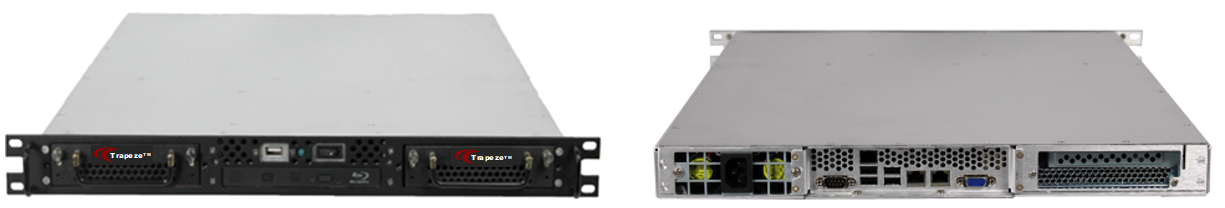

Trapeze GEN II RNC Computer Specifications
- Five year standard warranty
- Windows 10 OS
- Solid state hard drive
- Tested to MIL-STD-810
| Specifications |
|---|
|
Mechanical 1U |
| Height: 1.75" (4.45 cm) |
| Width: 16.93" (44.45 cm) EIA-310 Rack Compliant |
| Depth: 20" (50.8 cm) |
| Weight: 14.8 - 18.6 lbs. (6.7 - 8.4 kg) |
| CPU
Intel CPU architecture options from Intel embedded long-life roadmap |
| Option 1: Sandy Bridge or Ivy Bridge LGA1155, X9SAE-V |
| Option 2: Haswell or Broadwell LGA 2011, X10SRL-F |
| Dual, Quad, Hexa, Octa, Deca, or Dodeca Core options (dependent on motherboard) |
| Expansion |
| One (1) full-height, ¾ length slot |
| External Bay |
| Option 1: Two (2) removable SATA or SAS 2.5" or 3.5" HDD |
| Option 2: Four (4) 2.5" SATA or SAS HDDs |
| Option 3: (can be combined with HDD option): One (1) CD/DVD/BD (R/W) |
|
Memory |
| 8-256 GB DDR4 |
| Mounting |
| EIA rack mounted slides: Mounted on ball bearing slides |
| Power Supply |
| Option 1: 460W 110/240 VAC w/ PFC |
| Option 2: 18-36 VDC |
| System Board |
| Option 1: X9SAE-V, Single LGA1155, Xeon, i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI, 2 PCI-E X1, 1 PCI-E X4, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2 |
| Option 2: X10SRL-F, Single LGA2011 R3 Xeon, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10 |
| Environmental Standards |
| MIL-STD-810, Operational Temperature, Method 501, Procedure I/II: -10°C to +50°C, -40°C operational with SSD, capable of -40°C to +71°C with select processors |
| MIL-STD-810, Storage, Method 501, Procedure I/II: -30°C to +75°C |
| MIL-STD-810, Humidity, Method 507, Procedure I/II: 240 hours with humidity kit |
| MIL-STD-810, Altitude, Method 500: 10,000ft operation, 20,000ft transport |
| MIL-STD-810, Vibration, Method 514, Procedure I: 1.5 GRMS, 5-2,000Hz, 75 min/axis |
| MIL-STD-810, Shock, Method 516, Procedures I/V: 20g, 11msec; 3 axes, each direction |
| Electromagnetic Compatibility Standards |
| FCC Class A |
| Export Compliance |
| ECCN: 5A992 |
| Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification for your product. |
| Cooling |
| High speed, high volume fans (6) CPU temperature controlled |
| Software Compatibility |
| Accepts Windows 10, Windows Server 2012, Windows Server 2016, VMware, or Linux |
Gen II RNC Modem Assembly
The new Trapeze TransitMaster Generation II Radio Network Controller Modem Assembly is the fixed site TDMA data interface component between the Radio Network Controller (RNC) and the base radio station.
Assembly Feature Summary
- Provides dual modems for simultaneous transmit and receive of TDMA data
- Provides 8 general purpose I/O ports for customized applications
- Provides test and diagnostic ports and LED indicators
- Provides the capability for switching between primary and secondary data systems
- Windows 7 and future operating systems compliant
- Selectable TDMA data rates of 4800 & 9600 bps
- The assembly is external to the RNC and contains fast disconnect cables for easier service
- USB interface to RNC

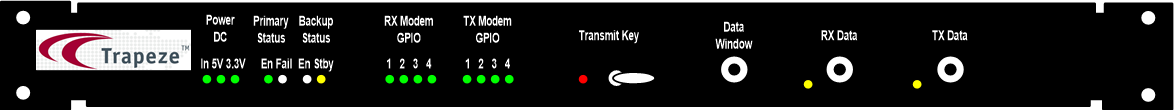

RNC Modem Assembly Front Panel
| Specifications |
|---|
Physical Characteristics
|
Environmental
|
Interfaces
|
