Extracting Stop Patterns

The Extract function on the Stop Patterns tab enables you to extract node patterns to create the associated stop patterns.

Procedure

After extracting a node pattern, you can then create the associated stop pattern.

  1. With the Stop Patterns tab displayed, click Route Definition > Edit or click Edit: Edit button

    The Edit dialog box appears.

  2. Select the Extract tab.

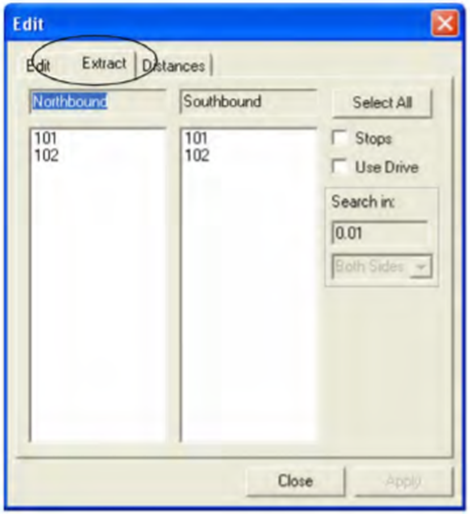

    Extract stop tab
  3. From the list of patterns under each Direction frame, select the patterns from which you want to extract stop patterns.
  4. Optional: To select all, click Select All.
  5. To include all the stops in the selected patterns, select the Stops check box.
  6. Optional: Select the Use Drive check box. The fields in the Search in frame are activated. Type a value in the Search in field. From the drop-down list, select Both Sides (for both sides of the route) or select a specific side of the route. The Drive feature ensures that the stop patterns are more accurate especially for routes that split.
  7. Click Apply.
  8. Click Close.
    Note: Always calculate distances after extracting patterns regardless of how any update property has been set.
