Defining Solution Sets

Solution sets can contain multiple rows of solutions, which are associated with parameter sets.

Before you begin

Open the Trapeze4 Workstation.

About this task

PASS-IPA typically uses only one solution set.

Procedure

  1. Click File > Ancillary Data > General > Trip Planning Solutions.
    The Trip Planning Solutions dialog box appears.
  2. In the Name column, type a name for the solution set you are defining.
  3. In the Product list, click the product:
    OptionDescription
    CTM Used with INFO.
    CTMEngine
    Note: This functionality is only available if you have Trapeze4 on your main computer screen. If the application is used on a secondary computer screen, move the dialog box to the main computer screen to see the available options.
  4. Click the appropriate parameter set in the Parameter Set list.
    For example, the default parameter set for requested pick-up trips.
  5. Click Save.
    The solution set is listed in Trip Planning Solutions ancillary data.

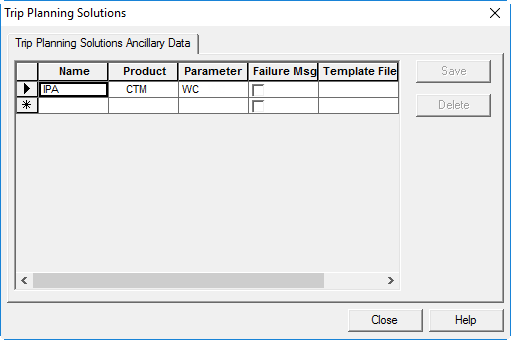

    The Trip Planning Solutions dialog box with one solution set listed.
  6. Click Close.
  7. Do one of the following:
    • Click Task > Personal Trip Planning.
    • Click the Personal Trip Planning button:
      A person getting on a bus.
    Personal Trip Planning appears.
  8. Click the Solutions tab.
  9. In the Solution Set list, click the solution sets for requested pick-up trips and requested drop-off trips, if required.
    In the following image, one solution set is used.

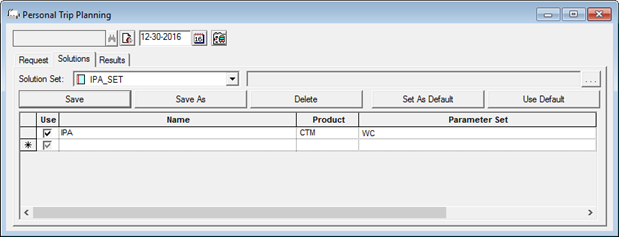

    Personal Trip Planning with a Solution Set called IPA_Set shown.
  10. Click Tools > System Properties.
    The Properties dialog box appears.
  11. On the Profile tab, click IPA.
    More properties appear.

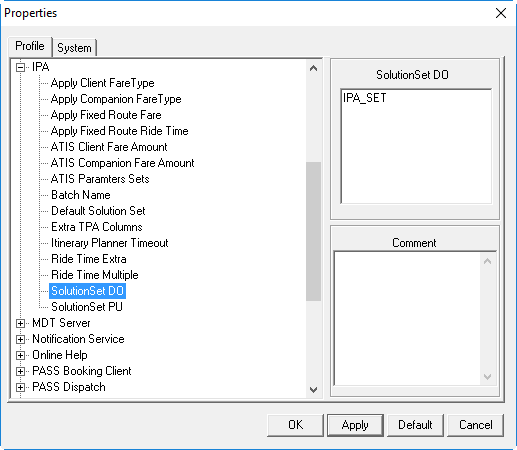

    The Properties dialog box for System Properties with the IPA SolutionSet DO property highlighted.
  12. Specify the default solution sets (and add a comment, if desired) for the following properties:
    SolutionSet DO
    The name of a solution set for requested drop-off trips.
    SolutionSet PU
    The name of a solution set for requested pick-up trips.

    If one solution set is used, specify it for both properties.

  13. Confirm the solution parameter set is available in Trapeze4 ancillary data:
    1. Click File > Ancillary Data > General > Solution Parameter Sets.
      The Trip Planning Solution Parameter Sets Ancillary Data dialog box appears.
    2. Confirm the Name, Product, and Parameter information for the listed parameter sets.
    3. Click OK.
  14. Click OK.
