Defining the Page Setup

The values defined on the Page Setup tab are applied when printing the bus graph.

  1. Open the Setup dialog and click the Page Setup tab.

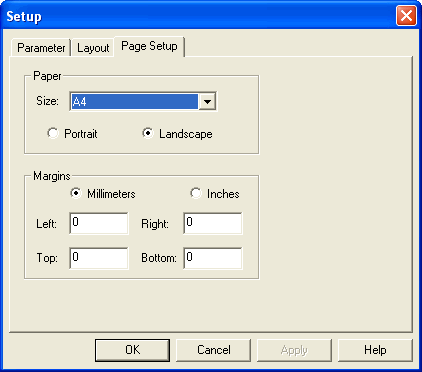

    page Setup tab of the Setup dialog
  2. In the Size list, select the appropriate paper size.
  3. Select the orientation of the printout: Portrait or Landscape.
  4. In the Margins frame, perform the following steps:
    1. Select the unit of measure you want to apply: Millimeters or Inches.
    2. Type the size of the margin that you want for the four sides of the paper: Left, Right, Top, and Bottom.
  5. Click Apply.
  6. Click OK.
