Printing Data of One Grid

You can choose to print the data of the first (left or top) grid only.

  1. With the Route Definition or Trip Building screen open, click Print.
    The Select Grid Columns dialog box appears. The options (column headers) in the first grid are selected by default.
  2. To include specific columns, click Select All.
    1. Select the required options.
    2. Optional: Manually clear the check boxes of the columns you want to exclude from the printout.
  3. Click OK.
    The Select Grid Columns dialog box appears with all the options selected. The title bar now shows the name of the second grid.
  4. Click Select All to clear all options.
  5. Optional: To view the output on a spreadsheet, select the Use Excel check box.
  6. Click OK.
    A preview of the printout appears in a text editor format, which allows you to add, delete, or rearrange the data. The data of the second grid is not shown in the preview.

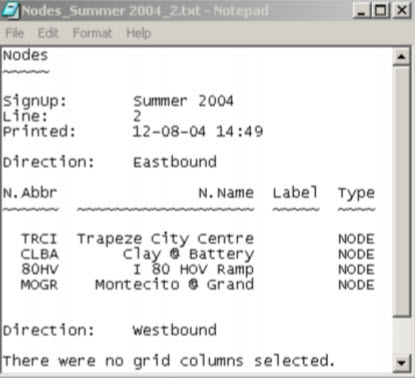

    Sample print preview of data of one grid
  7. Optional: If you select the Use Excel check box, Excel® is launched and the selected data appears on a spreadsheet.
  8. Save the file or send it to the printer of your choice.
