Extracting Trips by Block

Ridership Analysis is a valuable tool for examining and evaluating ridership within your service area. You can extract trips for any route, direction, or block; you only need to define the sign-up period in the Set Mode (F3) screen before you extract trips for ride checks.

Choosing a specific block is an efficient way to select a group of trips for checking. A block represents a group of trips assigned to one bus. Therefore, the checker can stay on the bus from trip to trip to perform multiple ride checks.
  1. Click Ridership > Extract Riding Checks by Block.
    The Riding Check Trip Extract dialog box appears.

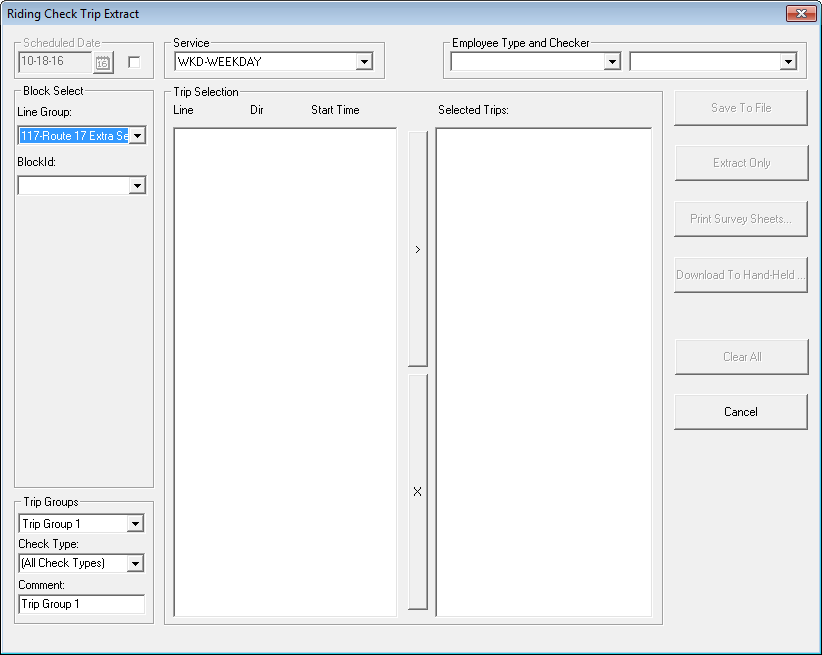

    Riding Check Trip Extract dialog box
  2. In the Block Select frame, select the appropriate line in the Line Group drop-down list.
  3. In the Block Id drop-down list, select the block from which you want to extract. The trips of the selected block are shown in the left column of the Trip Selection pane.
  4. Optional: In the Trip Groups frame, select the appropriate trip group.

    Creating Trip Groups is used if you are creating extractions for hand-held computers. Trip Groups make it easier to group ride checks into pieces of work for checkers.

  5. Optional: In the Check Type drop-down list, select All Check Types or a specific Ride check type.
  6. Optional: In the Comment field, type an appropriate comment.
  7. In the Service drop-down list, select the appropriate service.
  8. Optional: In the left frame of the Trip Selection pane, double-click a trip (in any color except black).
    A summary of the check history appears in the Ridership Check Edit dialog box.

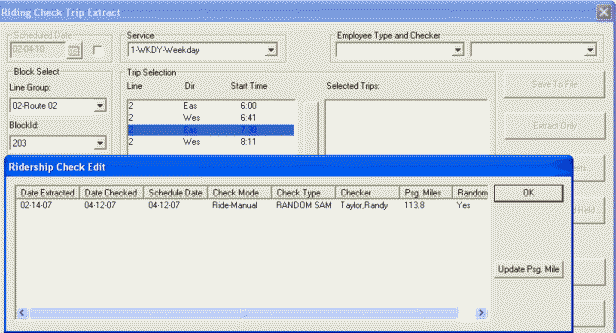

    Riding Check Trip Extract and Ridership Check Edit dialog box

    To sort the data in the Ridership Check Edit dialog box, click any of the column headers and click OK.

  9. Optional: In the Riding Check Trip Extract dialog box, select an employee type in the left list in the Employee Type and Checker frame.
    The list of checkers who match the selected type are shown in the right list. Select the appropriate checker.
    Note: If you do not see the name of the appropriate checker, click Task > Employees in the Ridership screen. Then, in the Employees screen, click Employees > Add. Enter the information about the new checker, and then click Save on the toolbar. If the Employees task is not available on the Task menu, contact your Trapeze representative.
  10. In the Trip Selection frame, select the trips to be extracted by doing one of the following steps:
    • To select one trip, click the trip you want.
    • To select multiple adjacent trips, perform one of the following steps:
      • Press SHIFT and click the first and the last trip that you want to include.
      • Select the first trip and drag it to the last trip that you want to include.
    • To select multiple non-adjacent trips, press CTRL and click each trip that you want to include.
  11. To move the selected trips to the Selected Trips column, click the Add (>) button.
  12. Optional: To remove a trip from the Selected Trips column, select the trip and then click the Remove (X) button.
  13. To perform the following tasks, click the appropriate button:
    • Save To File: To download to a hand-held device remotely. (For Citrix users)
    • Extract Only: When you do not need to print out a survey sheet or download to a hand-held computer.
    • Print Survey Sheets: To extract the trip and print out a survey sheet for collecting ride data manually.
    • Download To Hand-Held: To extract the trip and download the file to a hand-held device for collecting the ride data electronically.
    A message appears asking you if you want another extraction to be created.

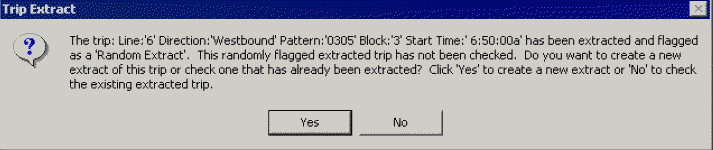

    Trip Extract message box

    This message appears when a trip has been extracted and not checked and then another user extracts the same trip again.

  14. Do one of the following steps:
    • Click Yes to check this trip for other purposes.
    • Click No to check this trip for NTD purposes.
    Note: This message appears for each randomly sampled extraction. Read the trip name on the message carefully each time to make sure that you choose the right option for each trip.
  15. Optional: Click another button after the system has completed your first selection.
  16. Optional: To remove the trips in the Selected Trips frame or after you have completed all your extraction options described in step 13, click Clear All.
  17. Click Done.
