The Headway Sheet provides a list of the trip times for specific lines by direction and services. It also provides block and run detail, garage pull-in/out, to and from line (interlining detail).

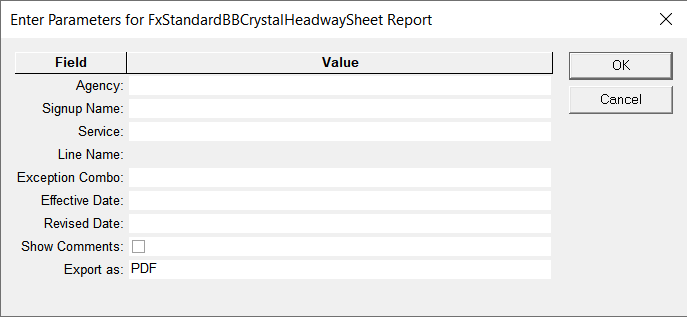

The following graphic shows the Headway Sheet parameters:
Parameter
Description
Agency
Agency code
Signup Name
Name of sign-up period.
Service
Service abbreviation
Line Name
Line number. This field is enabled after you select the Signup Name.
Exception Combo
Selected exception combination. This is set to <Off> by default.
Effective Date
Information related to the period when the report is in effect.
Note: This is
a text field. You can enter any piece of data you want to include in the report,
for example, date or name of user.
Revised Date
Information related to the period when the report is revised.
Note: This is a
text field. You can enter any piece of data you want to include in the report,
for example, date or name of user.
Show Comments
If selected, the comments associated with the trip times are included in the
report.
Export As
Allows you to select the format type of the report:
CSV (Comma-separated values file that is read with spreadsheet program)
Excel (Microsoft spreadsheet)
PDF (Read with Adobe Reader)
RTF (Rich Text Format)
WORD (Microsoft Word)

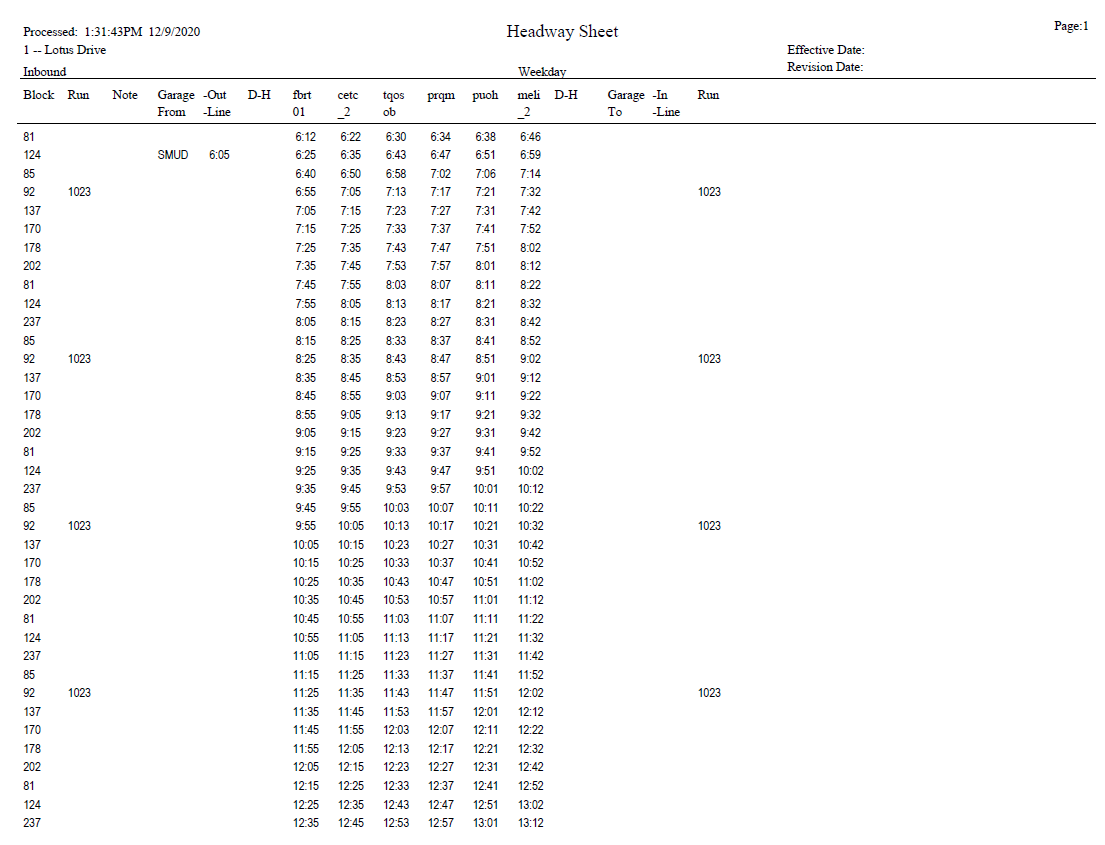

The following graphic shows an example of a headway sheet:
