About the Address Matcher Dialog

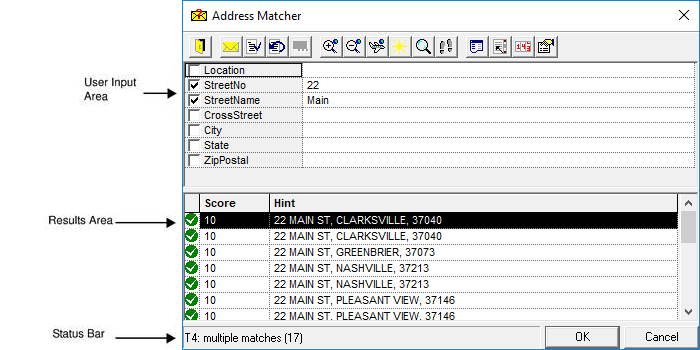

User Input Area

The user input area displays information transferred from the address box. This is the address information typed by the user, for example, street number and street name. A check mark beside each component of the address indicates that the address component was used as search criteria.

Results Area

The results area lists possible address matches derived from user input. By default, these possible address matches are ranked by score where the lower the score, the higher the ranking and the greater the likelihood of an exact match. (Scores are based on address matching parameters.) The Hint column lists the full address of each possible match.

Status Bar

The status bar at the bottom of the Address Matcher dialog indicates how many matches were found by the filters used.

The number in parentheses is not necessarily the same as the number of matches shown. If five matches are found, only two may be shown.

To see any remaining matches, click the More button:

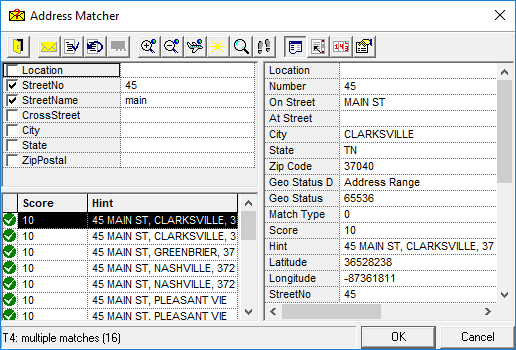

Viewing the Details Frame

The Details command lists detailed information on addresses in the results area of the Address Matcher dialog in a new pane.

To open the details pane, click the Show Details button:

To transfer address information displayed in the Details pane to the results area, click the Show Details button, and then double-click the appropriate information label in the details area.
