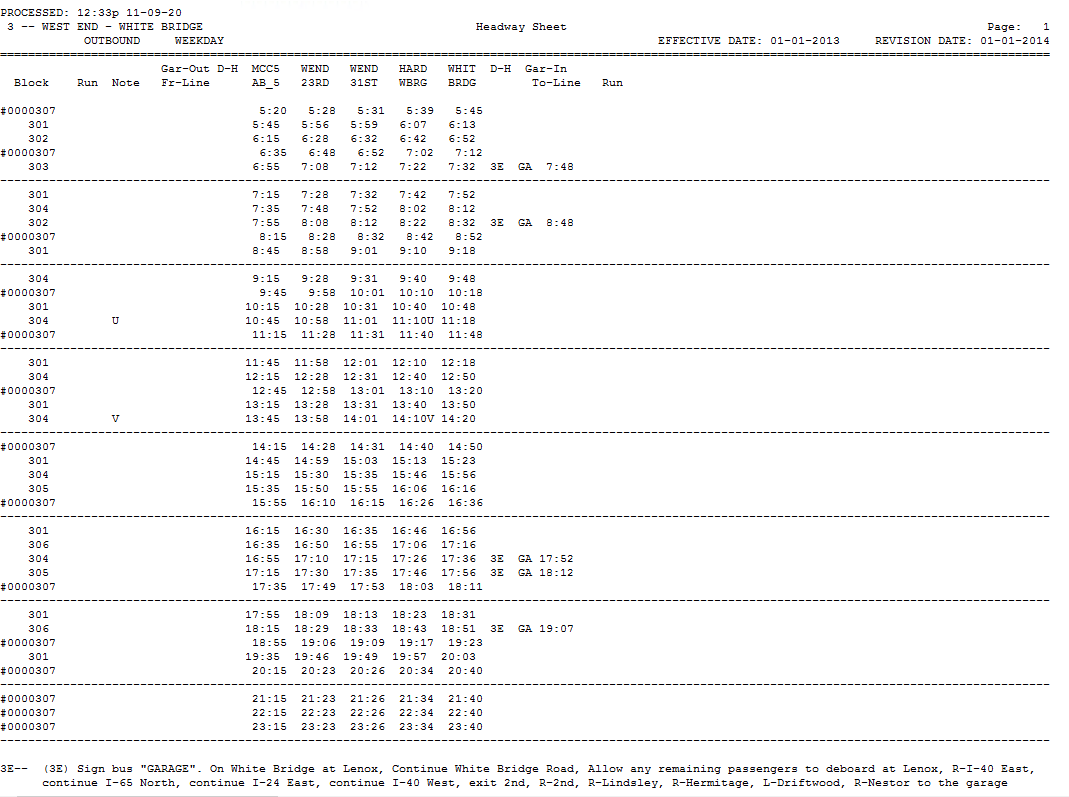

The Headway Sheet provides a list of the trip times for specific lines by direction and services. It also provides block and run detail, garage pull-in/out, to and from line (interlining detail).

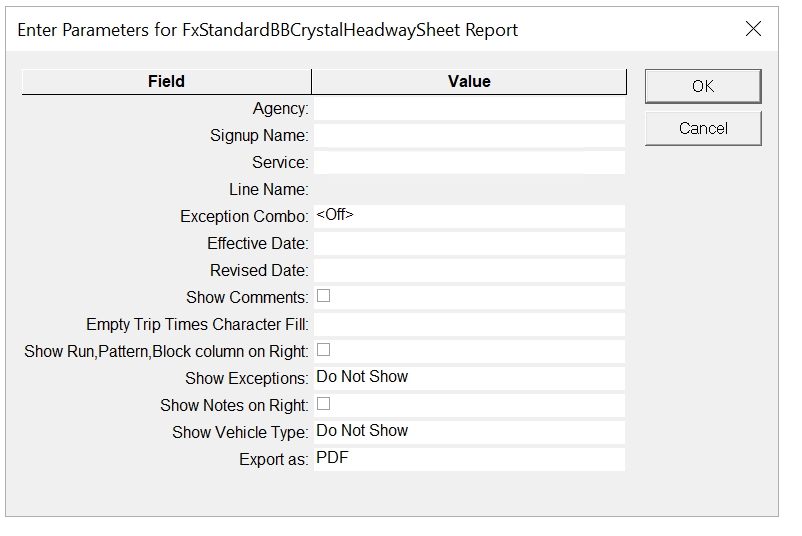

The following graphic
shows the Headway Sheet parameters ( for Crystal reports):
Parameter
Description
Agency
Agency code
Signup Name
Name of sign-up period
Service
Service abbreviation
Line Name
Line number
Exception Combo
Selected exception combination. Set to <Off> by default.
Effective Date
Information related to the period when the report is in effect.
Note: This is
a text field. You can enter any Piece of data you want to include in the report,
for example, date or name of user.
Revised Date
Information related to the period when the report is revised.
Note: This is a
text field. You can enter any Piece of data you want to include in the report,
for example, date or name of user.
Show
Comments
If selected, the comments associated with the trips in the headway are shown
at the bottom of the report.
Empty TripTimes Character
Fill
Allows you to set the character that is shown in the report if there are no
trip times instead of an empty field, for example, a dash (-) .
Note: In the
report, a vertical line separator is shown between timepoints and other trip
data.
Show Run Pattern, Block column on Right
If selected, the Run, Pattern, and Block columns that appear on the leftmost
part of the grid also appear on the rightmost part of the grid. They are repeated
before the last set of columns in a multi-page report..
Show Exceptions
Allows you to choose whether you want to show Exceptions associated with the
trips and where they are to be shown in the report. The options are:
Do Not Show
Left Margin Only
Both Margins
Show Notes on Right
If selected, the Notes column is shown on the right side of the grid.
Show Vehicle Type
Controls where the vehicle type information is shown in the Headway Sheet. If
selected, users can choose from the following options:
None -If selected, no vehicle type information is
included in the report. This is the default.
Left Margin Only - If selected, the vehicle type
information is shown on the left section of the report. The Vehicle Type
column is shown between the Exc (Exceptions) column (if shown) or the Run
column and the Garage From column.
Both Margins - If selected, the vehicle type
information is shown on the left and right sections of the report. In the left
section, the Vehicle Type column is shown between the Exc (Exceptions) column
(if shown) or the Run column (if Exc column is not shown) and the Garage From
column. In the right section, the column is shown after the In Line
column.
Dhd SG Not Dependant
*If selected, deadheads are included without service groups. (The parameter
only appears for text reports)
Dhd Line Dependant
*If selected, deadheads are included using lines. (The parameter only appears
for text reports.)
Export as
Allows you to select the format type of the report:
CSV (Comma-separated values file that is read with spreadsheet program)
Excel (Microsoft spreadsheet)
PDF (Read with Adobe Reader)
RTF (Rich Text Format)
WORD (Microsoft Word)
*If applied, the setting for this parameter should be the same for all your reports.
