About Ancillary Data
Ancillary data defines the foundation for the schedule such as Sign-up Periods, Divisions, Garages, Services/Service Groups and your Lines/Line Groups. Ancillary data is information that tells FX what specific conditions and information are applicable for your transit site.
About Nodes
Nodes are your timing points along a given route. Nodes are used and defined in the section on Route Definition.
Defining Node Parameters

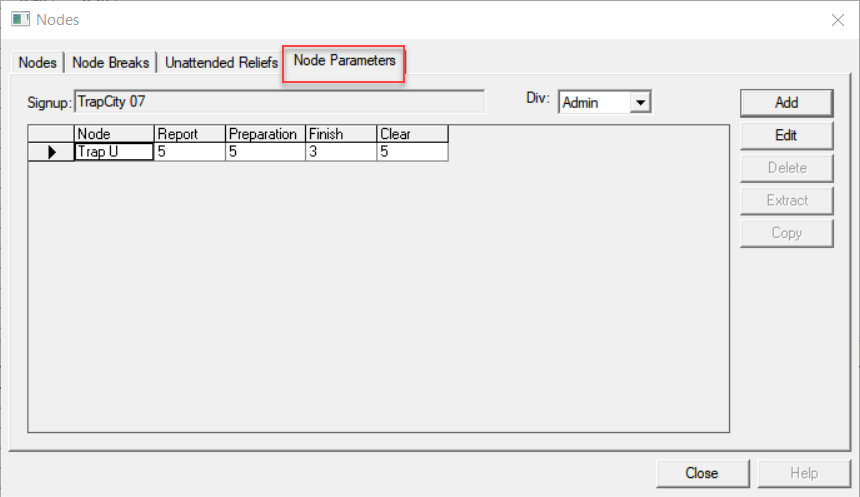

The Node Parameters tab is used only if your site also has the Trapeze BlockBuster application.

Defining Node Parameters

The Node Parameters tab is used only if your site also has the Trapeze BlockBuster application.

In BlockBuster, the global parameters for cutting runs are set up on the Parameters tab. To override the global parameters for a specific node related to the operator times at the start and end of a run, use the Node Parameters tab.

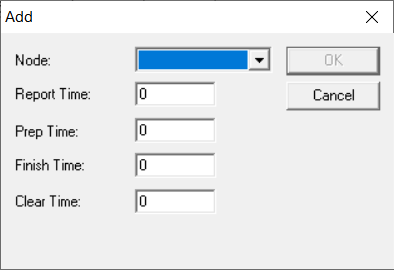

On the Node Parameters tab, click Add. The Add dialog box opens.
From the Node list, select the node for which you want to define parameters.
In the fields: Report Time, Prep. (Preparation) Time, Finish Time, and Clear Time, type the time values for which you want to override the global parameters set in BlockBuster.
Click OK.
In the Nodes dialog box, click Close.
