Editing Reliefs

Reliefs are created through pattern creation in the Route Definition screen but can be edited in the Reliefs dialog box.

  1. On the Nodes tab, select a node that has the reliefs you want to edit.
  2. Click Reliefs. The Reliefs dialog box opens.

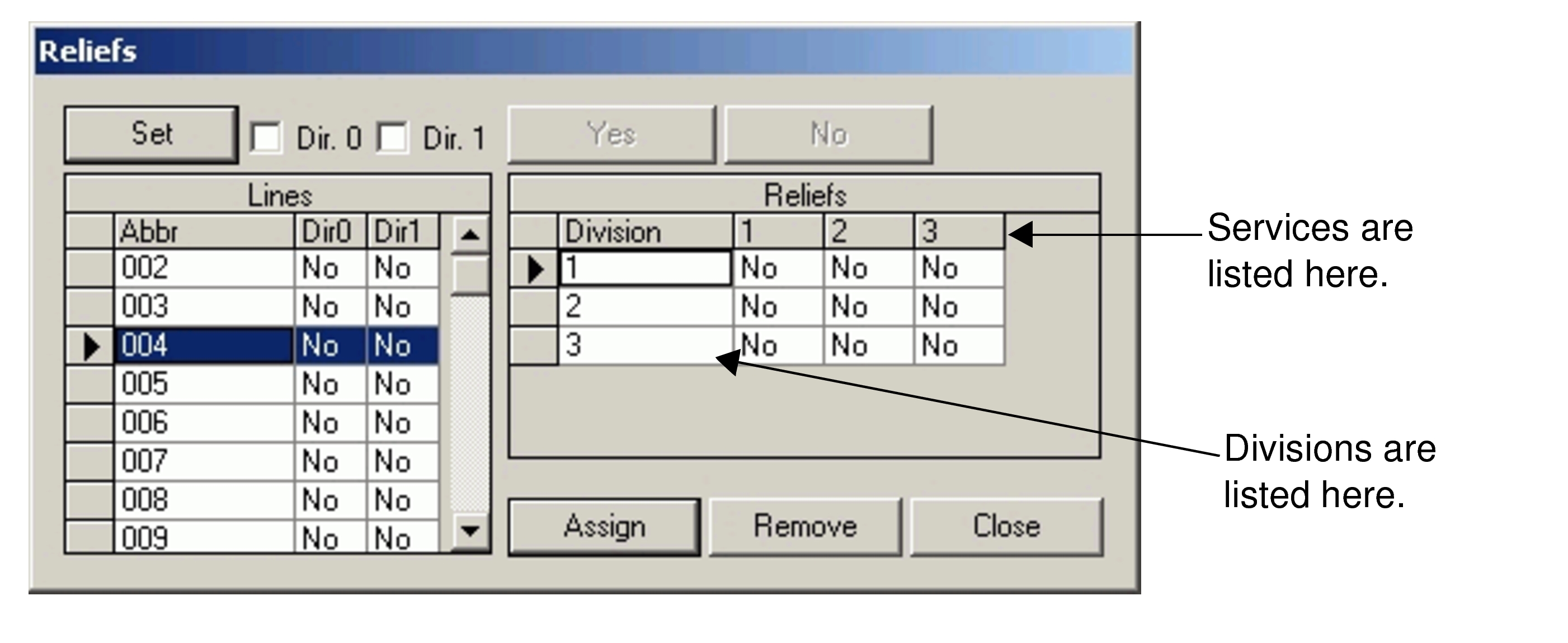

    Relief dialog box
  3. Perform any of the following steps, as applicable:
    • To change all lines for Dir 0 to a relief point at the node, click the Dir. 0 check box and click Set.
    • To change all lines for Dir 1 to a relief point at the node, click the Dir. 1 check box and click Set.
    • Click the Dir0 and/or the Dir1 fields beside each line for which you want to create a relief point at this node.
    • To make a relief point per line per division per service (see the column headers in the Reliefs frame), double-click a field that you want in the Reliefs frame.

      Alternatively, highlight the division you want to change and click Yes.

  4. Click Assign.
  5. Optional: To reverse the assignments you made, click Remove.
  6. Click Close.
