Applying Node Relief Labels to Divisions/Services

You can edit or add the relief label for a division under the appropriate service in the Labels dialog box.

Open the Nodes Edit dialog box.
The setting of your reliefs/breaks in the Properties dialog box determines what you see in the Division and Services columns in the Labels dialog box. To apply the related labels to divisions/services, make sure that the following properties are set to Yes.
  • Use Break Reliefs
  • Use Created Pullouts and Pullins
  • Use Unattended Reliefs

    The abbreviations of the labels (for example, R for Use Break Reliefs) you applied to the node appear in the Labels dialog box.

Note: If you did not select the node as a relief, a dash appears on appropriate fields in the Labels grid.
  1. On the Nodes tab, select the node whose label you want to edit.
  2. Do one of the following steps:
    • Click Route Definition > Edit.
    • Click the Edit button: Edit button.
    The Edit dialog box opens. The data of the selected node appears in the Edit tab fields.
  3. Click Edit Labels.
    The Labels dialog box opens.

    The Relief label is selected by default.

    In a multi-agency environment, the divisions and services of the agency in the current context are shown in the grid. The following graphic shows the label P (for Pullout/Pullin) for the divisions.

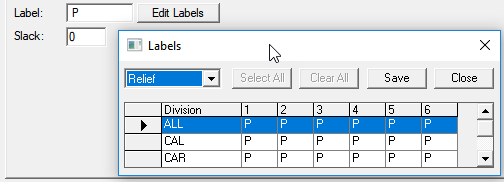

    Labels dialog box with the Relief option selected
  4. On the row of the division you want to add or edit, type or remove the label under the appropriate service. For example, you want to add a break relief to the node for a different division during the weekend (Sat), type "R" on the field under the Sat column on that division row.
  5. Click Save.
  6. Click Close.

    If you made any changes to the labels and did not save them before attempting to exit the dialog box, a message appears asking if you want to do so. Click Yes.
