If you have the Trapeze PLAN, you can choose to display run times based on PLAN data
for a given time band.
The data is based on actual arrival times between two nodes. The run times are between
the departure of the vehicle from the first point to its arrival at the second point.
Note: Before performing this option, make sure that the ridership data for the trips being
viewed has been checked in PLAN and in the same sign-up period.
-
On the main menu, click Trip Building and choose one of the following options depending on the data that you want to view:
- Show PLAN Data Average - Displays the average values of the
run times. The Setup PLAN Data Range option is added to the
Trip Building menu.
- Show PLAN Data Median - Displays the median values of the run
times.
Alternatively, right-click anywhere on the Run Times tab, and
from the shortcut menu select one of these options.
A new row is added under the applicable pattern on the Run
Times tab. The Pattern field shows
Actual to indicate that the run times shown are based on the
actual times extracted from the PLAN data.
- Optional:
To view data over a specific time period, click the Setup PLAN Data
Range option in the Trip Building menu.

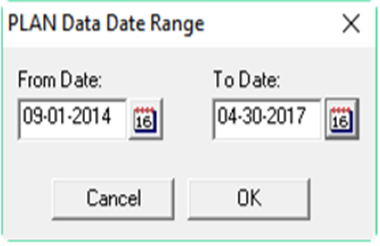

The
PLAN Data Date Range dialog box appears.
In the From Date and To
Date fields, select the appropriate dates for the time period you want,
then click OK.
