Viewing Reliefs

View the relief points assigned to a block at any time during the runcutting process.

The Reliefs dialog box helps you understand the frequency of reliefs on runs. It shows you the relief points associated with a particular block. Some of the nodes appear with operational signs beside them.

  1. On the Runs tab, highlight a block in either the Cut Pieces or Uncut Pieces grid.
  2. Click Runcutting > View Reliefs.
    The Reliefs dialog box appears with a list of nodes that have been identified as relief points of the selected blocks. Some of them may appear with operational signs.

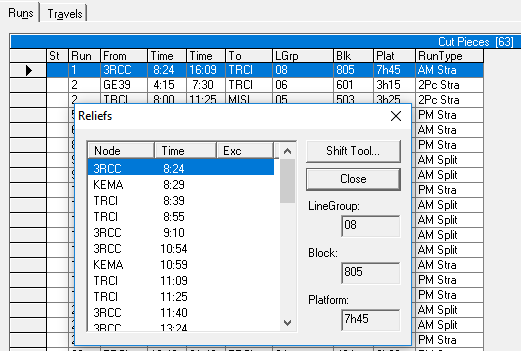

    Relief Dialog with sample data
  3. Optional: To make changes to the time of a node, click Shift Tool.
    The Shift Tool (Trip-Block-Run-Roster) dialog box appears.
  4. Click Close.
