Viewing Runs on the System Map

For every run in a schedule, the system assigns a different color used for display on the system map.

Procedure

  1. Do one of the following:
    • Click View > System Map.
    • Press Ctrl + M.
    • Click the System Map button:
      Planet Earth.
    The system map appears.
  2. Click Tools > Schedule Editor.
  3. Click the Display Runs button:
    R on blue paper.
    Runs view appears.
  4. Select the run.
  5. In the Color column, look at the color assigned to the run.
  6. Click the Display on the Map button:
    Computer monitor with three dots on it.
    The itinerary of the run appears on the system map (highlighted in the assigned color). Each event is labeled with numbers starting from 1 (that is, the first event on the run) to 2 (that is, the second event), and so on.

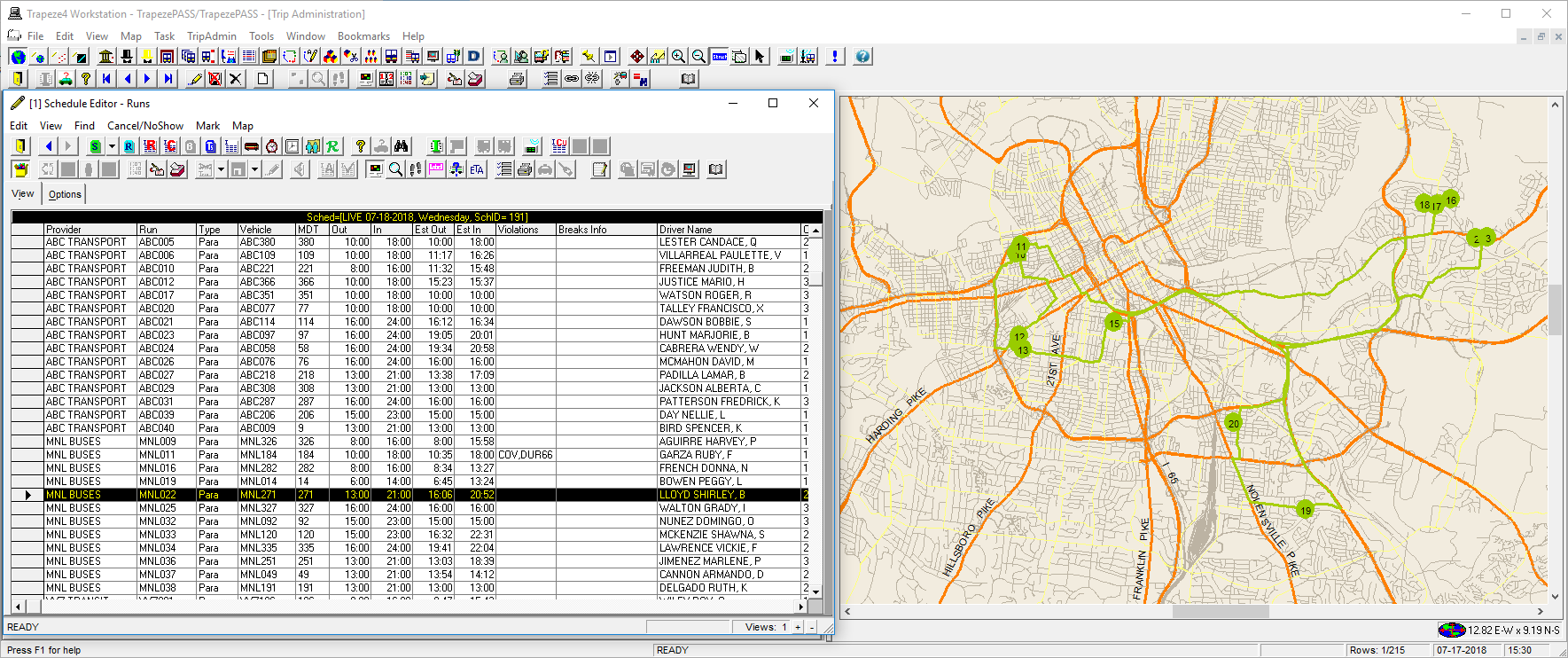

    Schedule Editor open to Runs view with the selected run itinerary shown on the system map.

    In this example, the property found in File > Properties, on the Tools tab, under Schedule Editor > Street Route Traces for Runs is set to Yes.

  7. Optional: If AVL data is available, click the ETA button:
    The letters ETA.
    The vehicle location appears on the map.
