Block Paddle
The Block Paddle provides a list of all the trips for each vehicle block for specified lines and services including the comments associated with them.

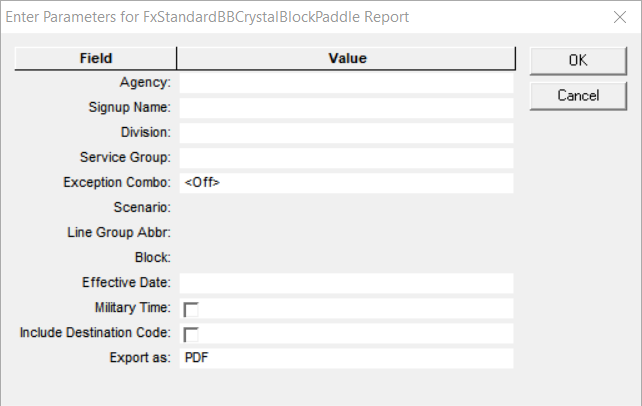

The following graphic shows the Block Paddle parameters:
| Parameter | Description |
|---|---|
| Agency | Agency code |
| Signup Name | Name of sign-up period. |
| Division | Division code |
| Service Group | Service Group abbreviation |
| Exception Combo | Selected exception combination. This is set to <Off> by default. |
| Scenario | Runcut solution comprised of the selected parameter settings and the resulting runcut. |
| Line Group Abbr. | Abbreviation of line group name. |
| Block | By default, it shows Vehicle Blocks unless you have activated Driver Blocks. This is used mainly for Rail transit. |
| Effective Date | Information related to the period when the report is in effect. Note: This is
a text field. You can enter any piece of data you want to include in the report,
for example, date or name of user. |
| Military Time | If selected, the 24-hour clock (midnight to midnight) time format is used,
for example, 13:00:00 is 1:00 PM. in the 12-hour clock format. If selected, this format overrides the format selected in Properties. |
| Include Destination Code |
If selected, the pattern destination code is added in the report. The code is defined on the Edit tab in the Patterns Edit dialog. |
| Export As | Allows you to select the format type of the report:
|

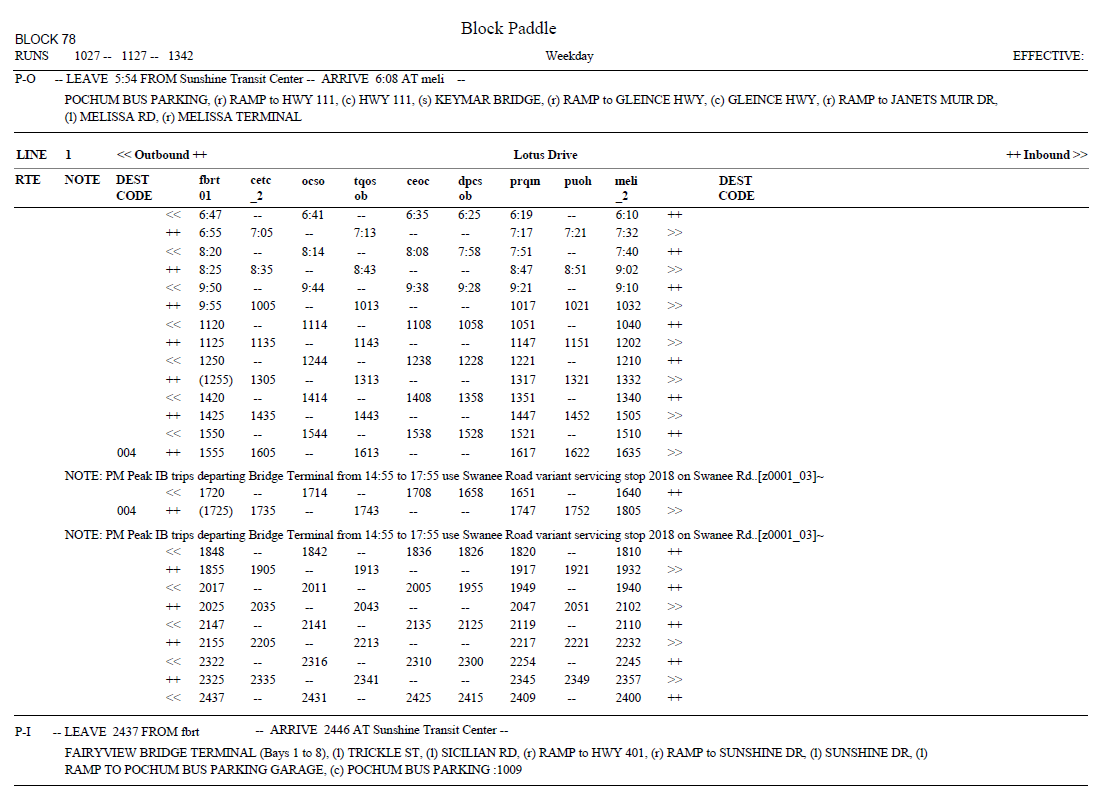

The following graphic shows an example of a Block paddle report:
The symbols that indicate the direction of the trip are: ++ for start of the trip and << and >> for the end of trip.
