The Pull-in Sheet provides a list of the pull-in (PI) times by division and service. It
provides the block number, last revenue timepoint, and run type.

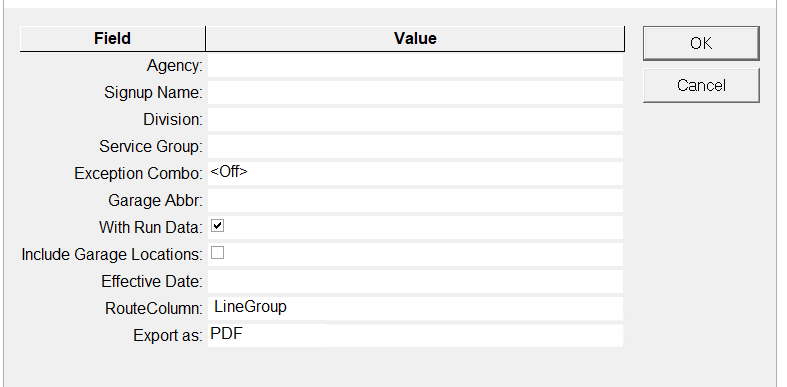

The following graphic shows the Pull-in Sheet parameters:
Parameters
Description
Agency
Agency code
Signup Name
Name of sign-up period
Division
Division code. You can select more than one division.
Service Group
Service Group abbreviation
Garage Abbr
Abbreviation of Garage name. The list of garages of the selected divisions
are shown. You can select more than one garage for each of the selected
divisions.
Exception Combo
Selected exception combination. This is set to <Off> by default.
Scenario
Runcut solution comprised of the selected parameter settings and the
resulting runcut. This field is enabled after you select the Service
Group.
With Run Data
If selected, the run type is shown.
Include Garage Locations
If selected, the name of the Pull-out garage is shown on the right of the
Time Out column and the name of the Pull-in garage is shown on the right of the
Time In column. This is not selected by default.
Effective Date
Information related to the period when the report is in effect.
Note: This is
a text field. You can enter any piece of data you want to include in the report,
for example, date or name of user.
Route Column
The Route Column field in the Parameters
dialog shows the following options:
Line Group
First Line on Block
Major Line (No of Trips)
Major Line (Most Hours)
Export as
Allows you to select the format type of the report:
CSV (Comma-separated values file that is read with spreadsheet program)
Excel (Microsoft spreadsheet)
PDF (Read with Adobe Reader)
RTF (Rich Text Format)
WORD (Microsoft Word)

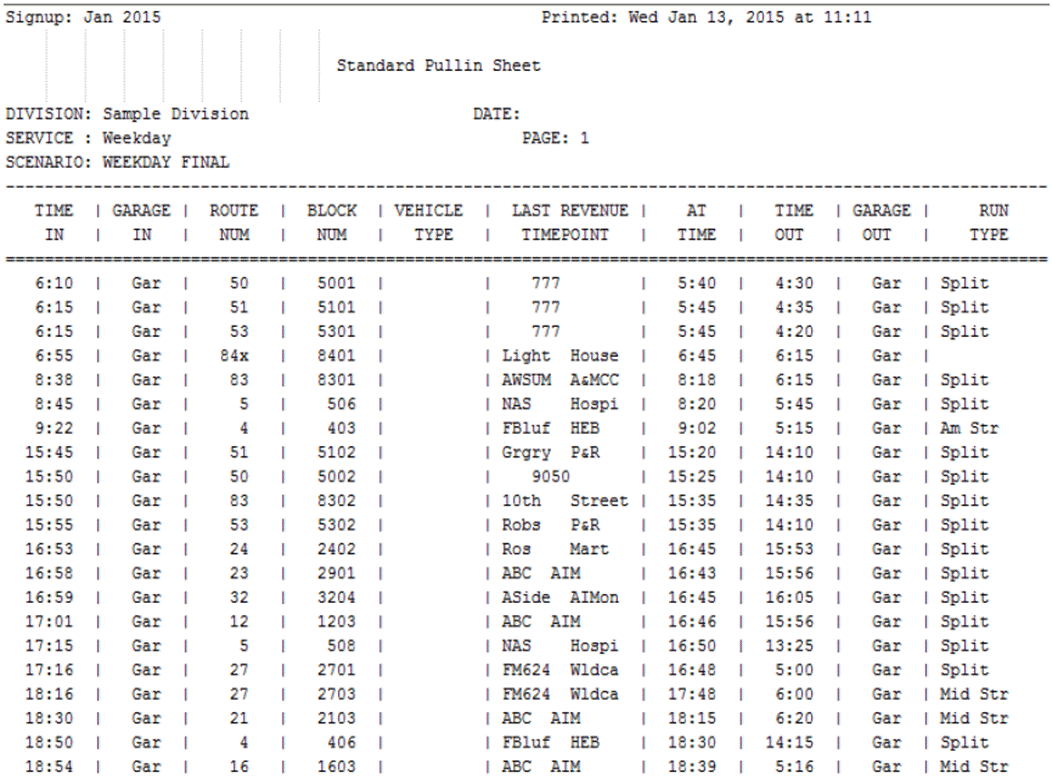

The following graphic shows an example of a Pull-in sheet: The At Time refers to the time that the vehicle is at the
first revenue node during the trip.
