Timing Point Report

The Timing Point report provides a list of the trip times for a specific node arranged in sequence by line and direction within the specified service.

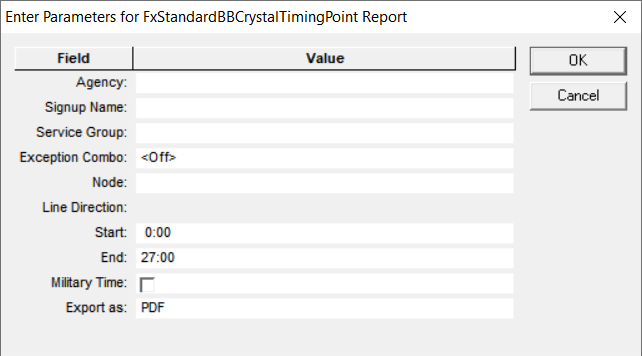

The following graphic shows the Timing Point report parameters:
BlockBuster Timing Point report parameters
Parameter Description
Agency Name of transit agency
Signup Name Name of sign-up period
Service Group Service Group name
Exception Combo Selected exception combination. This is set to <Off> by default.
Node Node ID
Line Direction Direction of the line. This field is enabled after you select the Node.
Start Start of the time range of the report.
End End of the time range of the report.

Military Time
If selected, the 24-hour clock (midnight to midnight) time format is used, for example, 13:00:00 is 1:00 PM. in the 12-hour clock format.
Note: If selected, this format overrides the format selected in Properties.
Export As Allows you to select the format type of the report:
  • CSV (Comma-separated values file that is read with a spreadsheet application)
  • Excel (Microsoft spreadsheet)
  • PDF (Read with Adobe Reader)
  • RTF (Rich Text Format)
  • WORD (Microsoft Word)

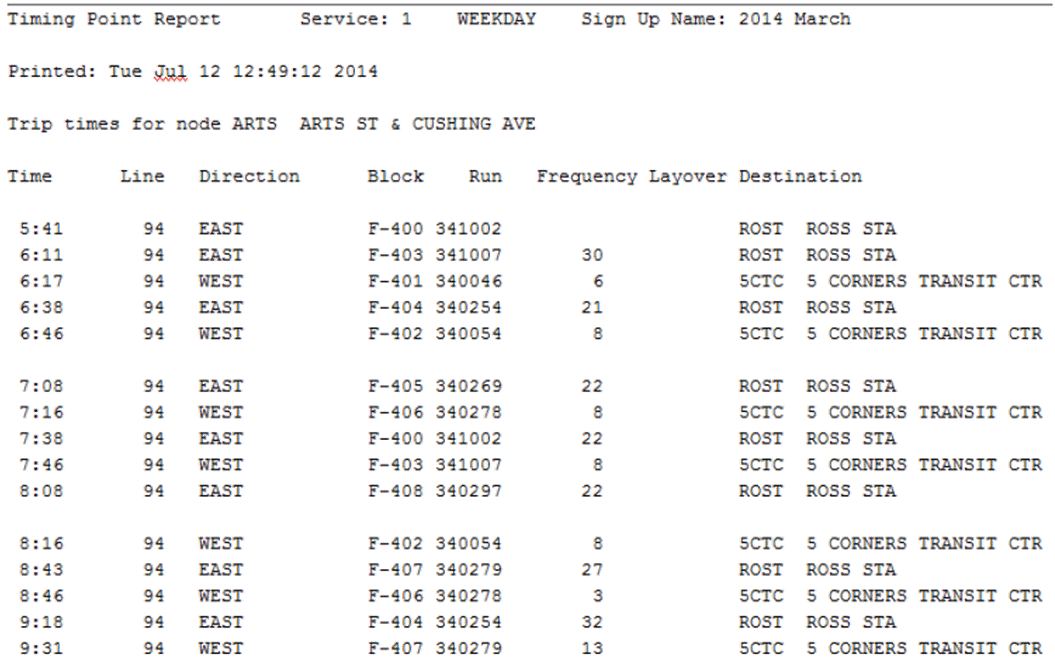

The following graphic shows an example of a Timing Point report:
Sample Timing Point report
