Replicating Run Time Intervals

To use the run times of an existing run time interval of another pattern in the same direction, replicate the interval.

You must first create or have at least two existing run time records for a specific pattern and interval. The patterns do not have to exactly match but must use the same node abbreviations.

  1. On the Run Times tab, select the run time interval from which you want to replicate.
  2. Click Edit: Edit button

    The Edit dialog box appears.

  3. Select the Replicate tab.

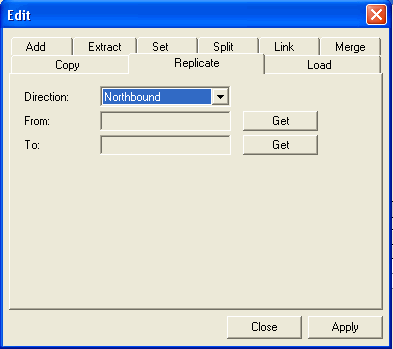

    Edit Replicate Tab
  4. In the Direction drop-down list, select the direction of the run time interval from which you want to replicate.
  5. Click Get beside the From field.
    The pattern and run time information of the interval which you want to replicate appears in the From box.
  6. On the Run Times tab, click the run time interval to which you want to replicate. This is the destination interval.
  7. In the Edit dialog box, click Get beside the To field.
    The pattern and run time information of the interval which you want to replicate appears in the To box.
  8. Click Apply.

The destination interval is updated with the replicated run times of the interval from which you replicated.
