Setting the Runs View

The Runs View tab contains options similar to those in the Blocks View tab.

  1. Click Graphical Runcutting > View Setup.
    The View Setup dialog appears.

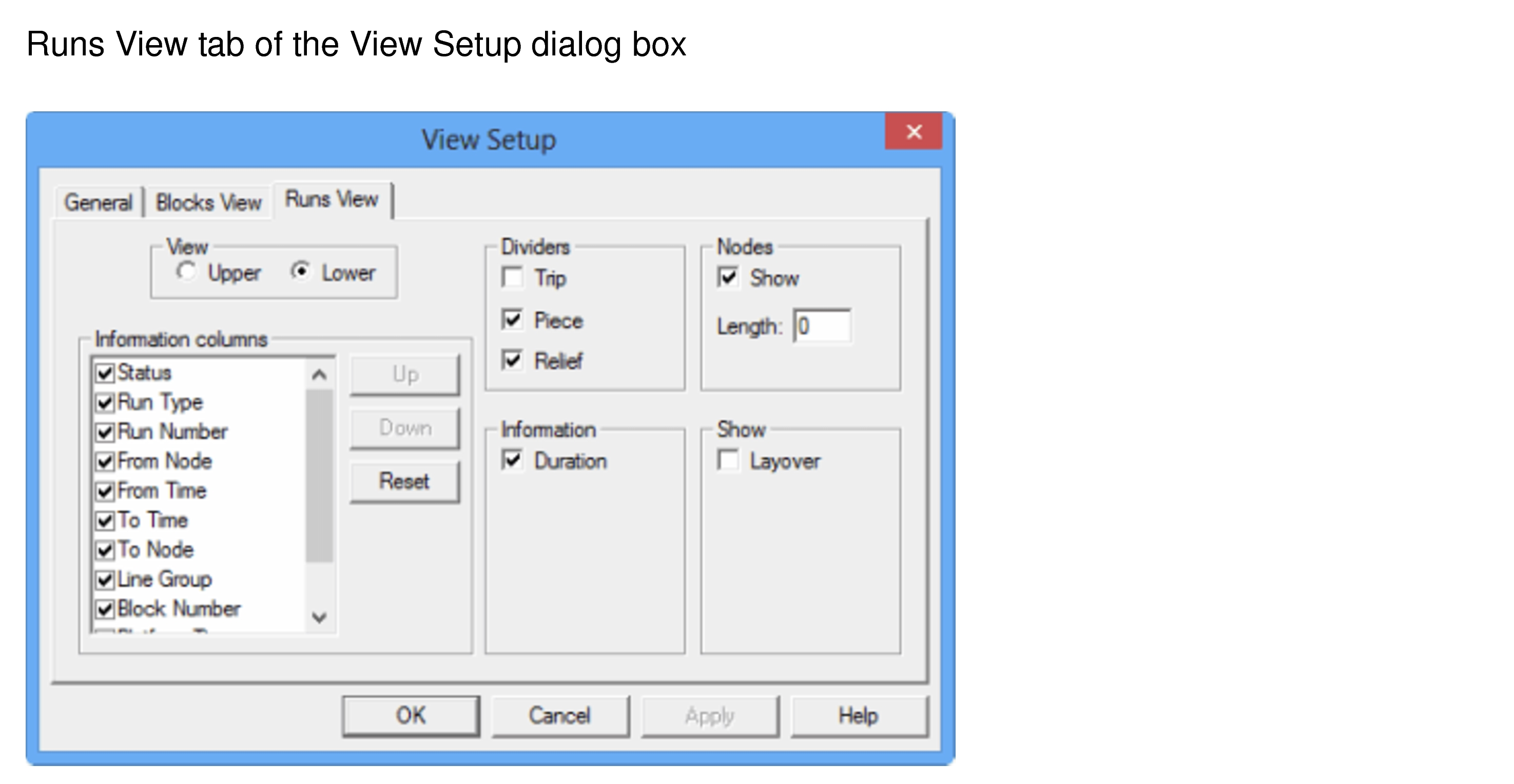

    Runs View tab of the View Setup dialog
  2. On the Runs View tab, set or select the appropriate attributes on the respective frames:
    • View: Select where you want the Blocks view to be displayed by default: Upper (top), Lower (bottom). Information columns: Select the data that you want to view on the grids.
    • Dividers: Select the component for which you want dividers - Trip, Piece or Relief.
    • Nodes: Select the Show check box to display the Node names on the timelines. In the Length field, type the number of characters of the Node names that you want displayed.
    • Information columns: Choose the piece of information that you want to display on the timeline. Click the Up and Down buttons to arrange the sequence of the columns. Click Reset to apply the sequence set as the default.
    • Information: To include information on duration, select the Duration check box.
    • Show: Select the Layover check box. The layover is represented by a thin line in a color different from the pieces. If not selected, the layover is represented by a gap (space) on the timeline.
  3. Click Apply.
  4. Click OK.
