Scheduling Integrated FX Bookings

Integrated FX (fixed route) bookings allow sites to better use their fleet by breaking up trips into segments performed by multiple vehicles, allowing customers to transfer vehicles to complete a trip.

Before you begin

Trip Booking must be open.

About this task

Sometimes, a booking solution cannot be found for a customer who wants to take a trip from one location to another. Such cases can result in the customer being unhappy and the site losing potential business because it is unable to meet the customer's request.

For example, a requested client trip may require long distance trip that could be expensive for the client and inconvenient for the site or a provider. To assist both the client and the site or provider, PASS can connect to a fixed route journey planning system, such as ATIS, to break up the fare across different transportation modes and/or request the client to walk a short distance to a pick-up location. This method ensures that the client will ultimately be transported to his or her final destination. To be able to use this feature, the site must use ATIS and user security must allow the user to access the Trip Plan Analyzer Wizard.

Contact your Trapeze representative for more information and assistance with setting up this feature.

Procedure

  1. Provide the following information:
    Date
    Trip date.
    Time
    Pick-up or drop-off time.
    Origin Location
    Trip's Origin location.
    Destination Location
    Trip's Destination location.
  2. Provide any other trip information as required.
  3. Click the Integrated FX Booking button:
    Teal-colored bus.
    The Integrated FX Booking dialog box appears.

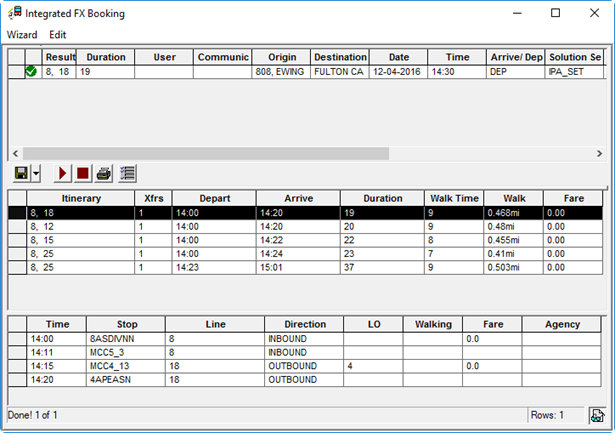

    The Integrated FX Booking dialog box with one result and multiple Itinerary options.
  4. In the middle pane, click and review the itinerary trips to decide the best FX trip to schedule. In the middle pane, the Itinerary column lists the vehicles that will perform the trip, and the Xfrs column indicates how many transfers are required to complete the trip.
    When a solution is selected, a preview of the itinerary appears in the bottom pane.
  5. Select an itinerary to schedule:
    1. In the middle pane, click the itinerary to be used.
    2. Click the drop-down arrow beside the Save button:
      Diskette with a downward-facing arrowhead.
    3. Click the save option to be used:
    • Save full itinerary
    • Save pick-up leg
    • Save drop-off leg

    The Integrated FX Booking dialog box closes.

  6. In Trip Booking, click the Itinerary tab to review the trip legs of the itinerary.
  7. Click the Save button:
    Diskette.
